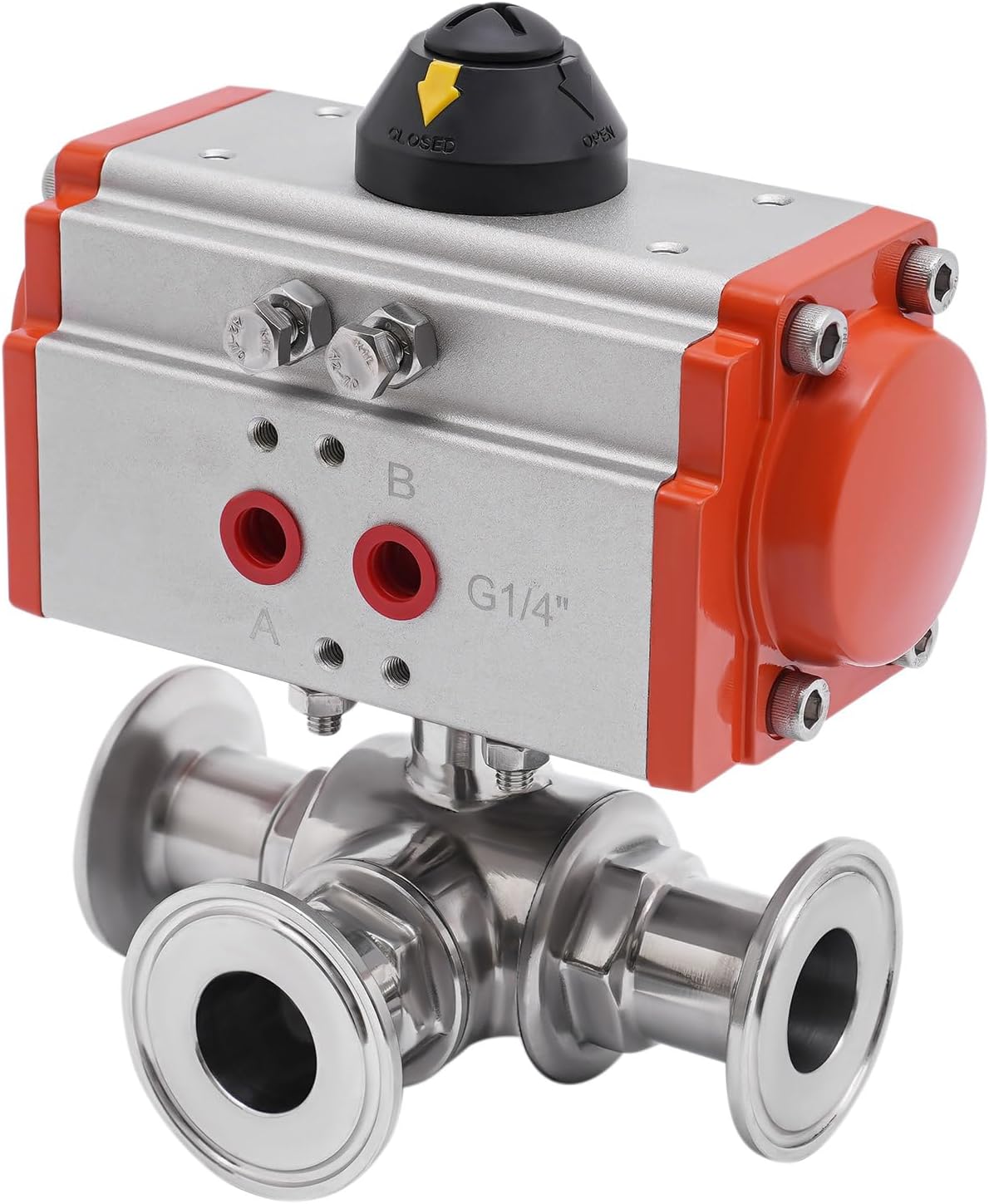

Pneumatic 3-way Ball Valve 304 Stainless Steel Tri-Clamp Ferrule Type for HVAC Systems, Solar Water Heaters, Fire Fighting Equipment (1 inch Φ25)

Details
3 Plastic Caps: They keep dust out when you are not using the product.
Arrow Marking: It is so intuitive that helps you to open and close the valve faster.

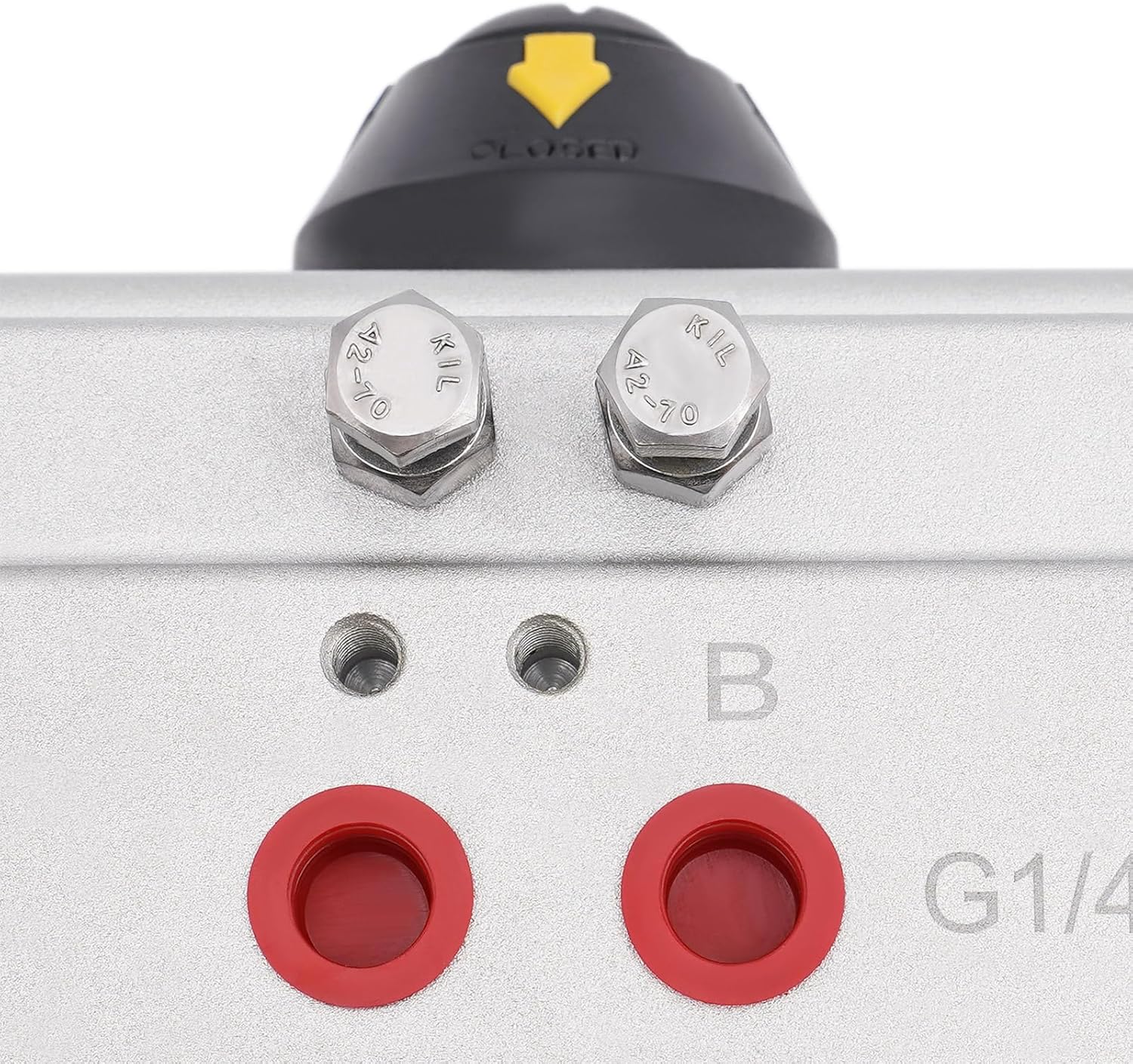

Standard Thread: The standard G1/4” thread makes the installation of this product interchangeable and universal, making it compatible with various types of equipment.


Specifications
Style: Modern
Color: Silver, Red
Material: 304 Stainless Steel, Plastic, Aluminum Alloy
Surface Treatment: Mirror Polishing
Control Type: Manual
Assembly Required: Yes
Port Size: 1″ (Φ25)
Sealing Material: PTFE
Actuator Type: Double Acting

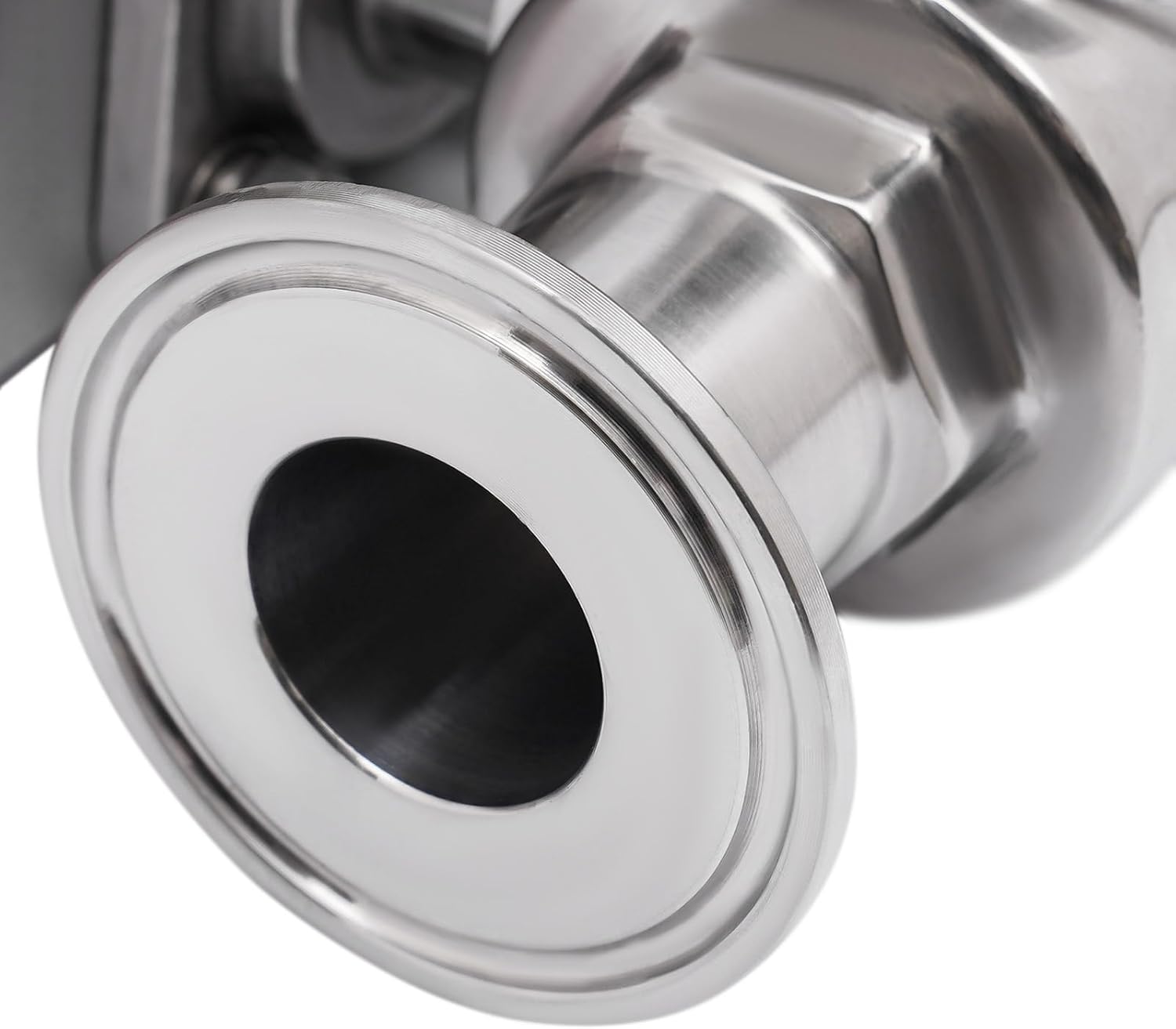

Connection: Clamping
Applicable Liquid Temperature: About 100℃/212℉
Max. Working Pressure: 1.6 MPa / 227 PSI
Suitable Medium: Air, Water, Oil
Operation: Pneumatic
Manual Override: No
Number of Ports: ‎3
Max. Torque: 7Nm
Valve Type: Sanitary Three-way Quick Release Ball Valve
Threaded Port Size: G1/4”

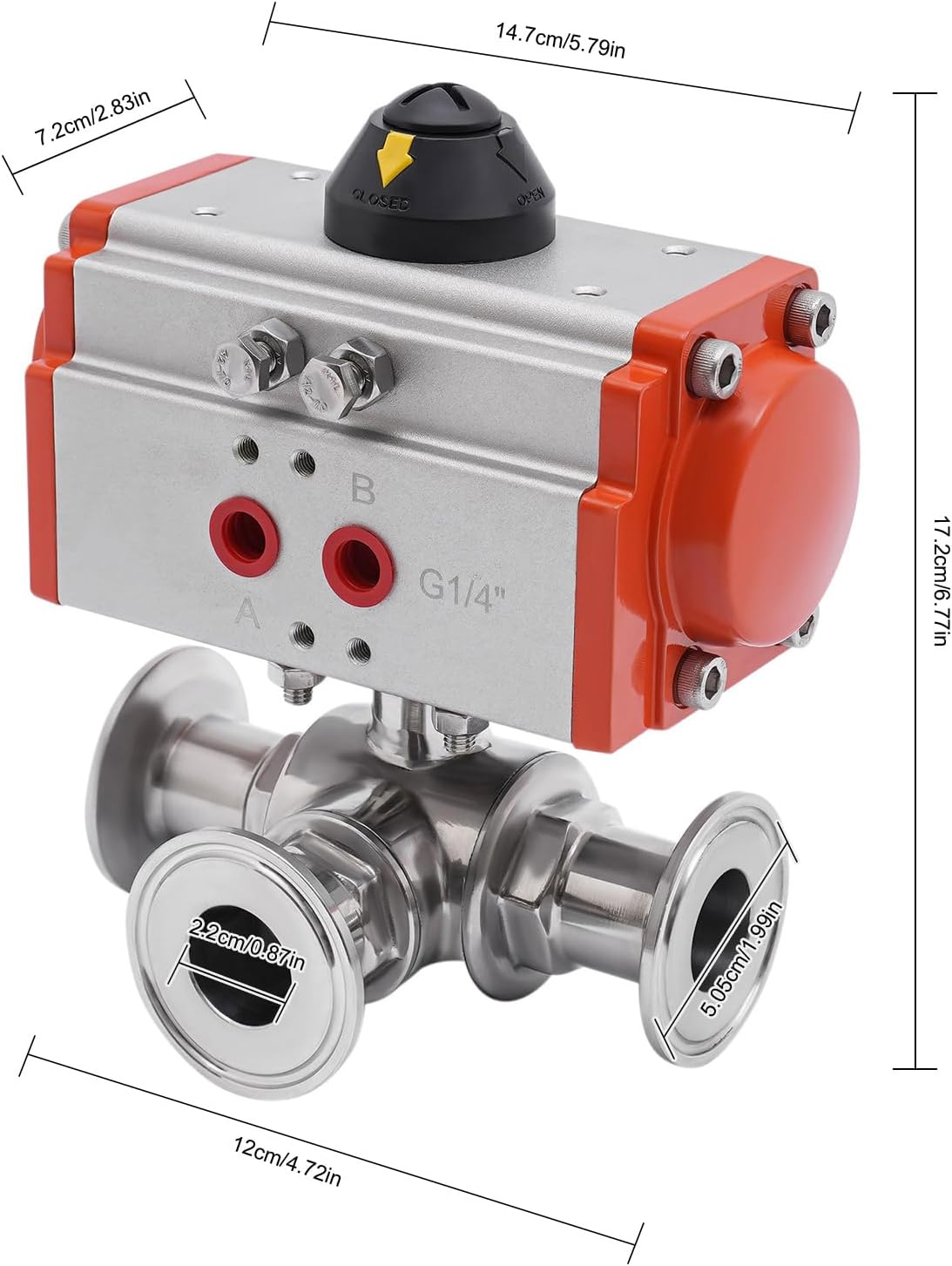

Overall Product Size: 14.7×7.2×17.2cm/5.79×2.83×6.77in
Small Connector Diameter: 2.2cm/0.87in
Large Connector Diameter: 5.05cm/1.99in
Gross Weight: 2.5kg/5.51lbs
Package Size: 15x12x18cm/5.9×4.72×7.08in


Notes
1. Please tighten the valve for safer operation.
2. Please note that the direction of rotation of the standard action is clockwise to close the valve, counterclockwise to open the valve.
3. Please avoid disassembling the product if everything is normal.
4. Please allow the slight color difference caused by the shooting light and 1-3cm error.
🛒[Sturdy and Durable] The pneumatic 3-way ball valve is made of high-quality 304 stainless steel, plastic, and aluminum alloy, using mirror polishing technology, with high strength, heat resistance, and wear resistance, ensuring a long service life.
🛒[Carefully Designed] It is equipped with an anti-static device to reduce electromagnetic interference. It adopts a three-way design, which can evenly distribute pressure.
🛒[Pneumatic Power] This pneumatic 3-way ball valve adopts pneumatic operation, which is simple and convenient to operate. It uses air as the energy source, low acquisition cost, and low maintenance cost, and meeting the working demand.
🛒[Excellent Performance] This pneumatic 3-way ball valve uses a high-quality actuator with gear-type dual pistons, making it have high output torque (7Nm), low friction coefficient, flexible rotation, small size, large flow capacity, and allowing for more efficient medium distribution.
🛒[Easy to Use] It can be easily opened and closed, from fully opened to closed as long as the rotating 90°, is easy to control, cut off, and change the direction of flow of the medium from a distance.
